Media Filtrations

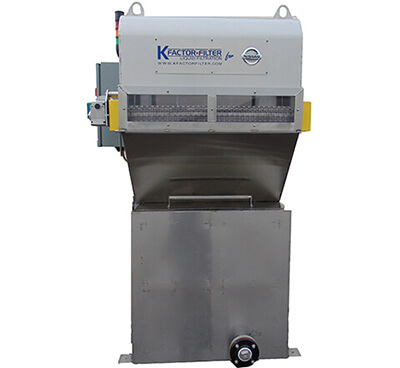

Standard KFF

The K Factor Filter system offers the most advanced technology and is the flagship of our fleet. Engineered and designed to suit countless industrial applications where the removal of unwanted solids from liquids is required. The K Factor Filter is a fully automated, self-cleaning system that saves you money by eliminating maintenance and downtime.
  • Body Material:
    • Painted Carbon Steel
    • Polished 304 SS
  • Vertical Float Switch
  • Interance and Exit Swing Gates and Bearing Guards
  • Electrical & Control Panel Features:
    • AB MicroLogix 1400 PLC
    • AB 7″ Panelview
    • 1/2 HP VFD for Conveyor Speed Control
    • 1/2 HP Motor
  • Free standard Roll of media
  • Heavy Duty Stand and Media Bin
  • KST-70
  • KST-150
  • KST-300
  • KST-600
  • KST-800
  • KST-1100
  • KST-1500
  • Aquence coated Carbon Steel Body
  • Inlet Valve Options
  • Media Out Sensor Kit
  • Float Shower
  • Overflow Protection
  • Control Panel
  • Rewinder Option
  • Tank Mounted
  • Level Control Pump Control
  • Customized Power Feed (240V, 380V, 575V etc)
  • Support for other PLC types
  • Top Cover with Clear Window

How it Works

  1. The flow of liquid enters the K FACTOR FILTER through the header box which evenly distributes the flow across the media.
  2. The flow of liquid is contained within the two sealing wheels allowing the media to trap the solids and return the clean liquid to the process.
  3. As the liquid level in the filter between the two sealing wheels rises, it will be sensed by a level float and initiate a cleaning cycle; new fresh media is introduced and the dirty media exits the filter.
  4. The clean filtered liquid returns to the process

For more information on the one-of a kind Standard KFF contact K Factor Filter at 1-855-593-7301.
